Equipment list

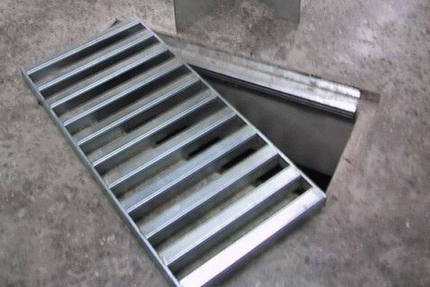

Return air floor gril
l
( AFG )
Axial fan for supply air
Axial fan for return air
Return air floor grill
Control air damper
Filter box
Rotary air filter
Evacuation fan
Low speed air washer
Vertical air washer
Washer water pump
Rotary water filter
Electric swicth board
Measuring divice
AC station door
Container air filter
Container air washer
